4400lbs Electric Pallet Jack

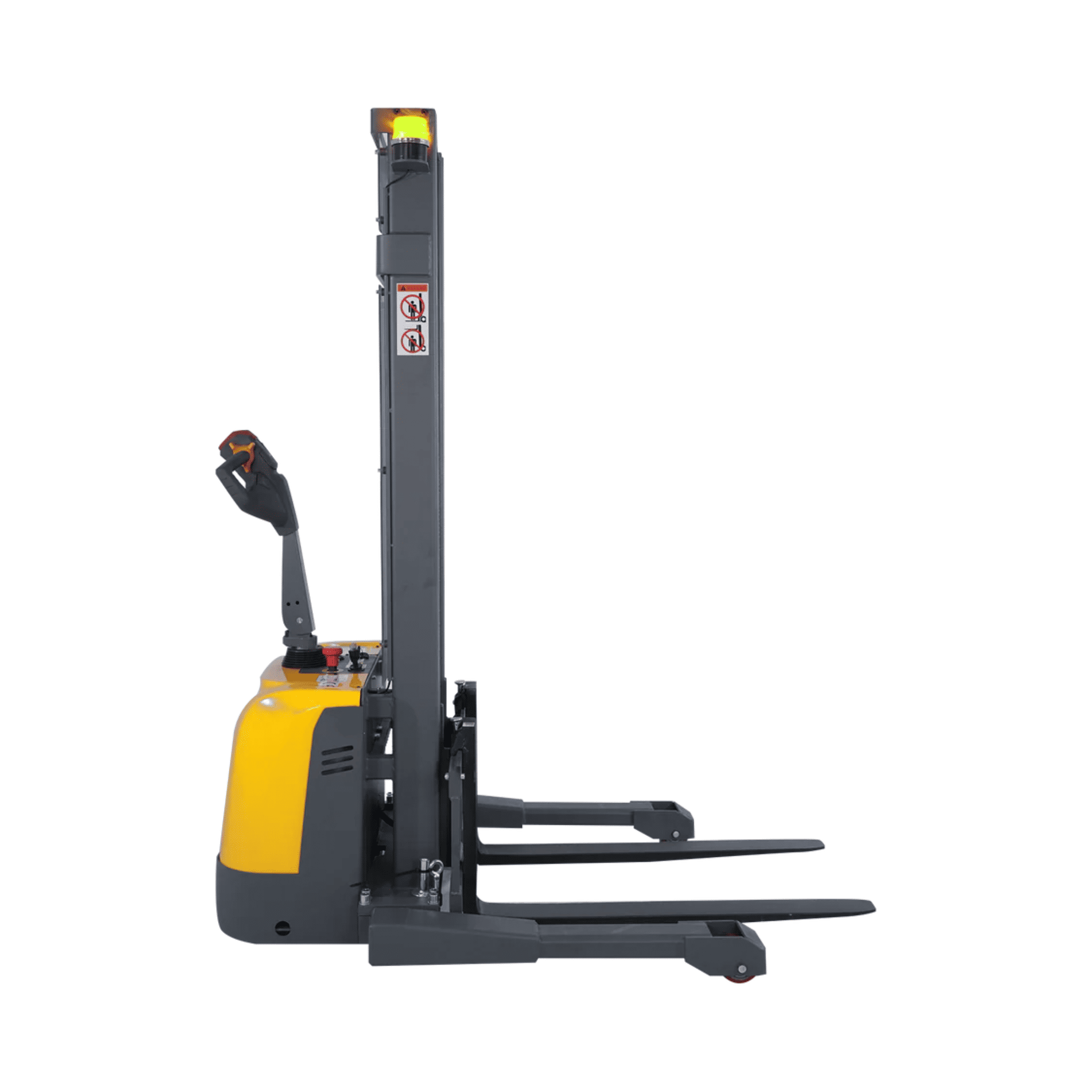

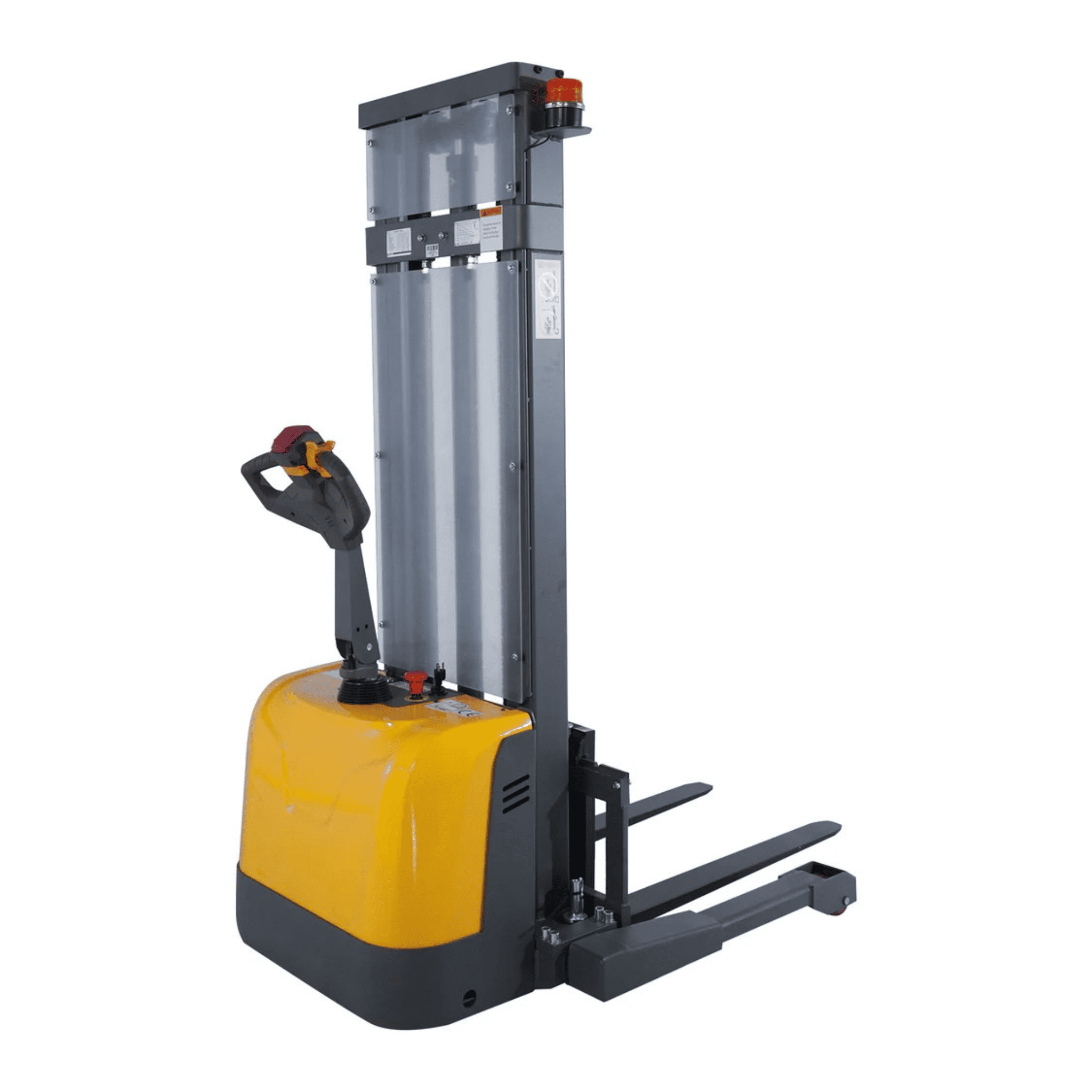

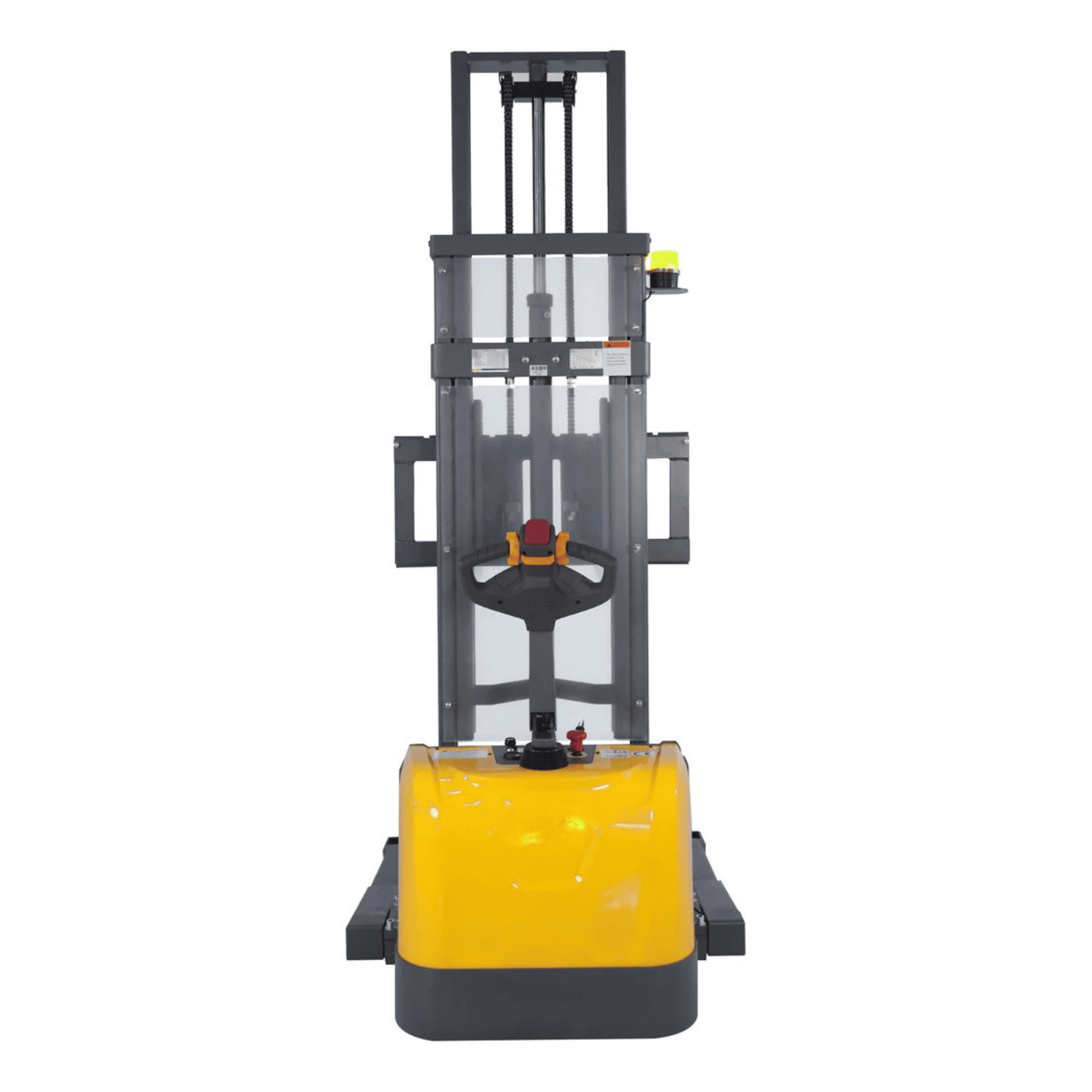

The CTD15R electric stacker handles up to 3,300 lbs and lifts to 137". With straddle legs, adjustable forks, and a compact frame, it offers smooth control in tight warehouse spaces—an efficient step up from manual stackers.
New

Product Description

  • Load Capacity: 3,300 lbs

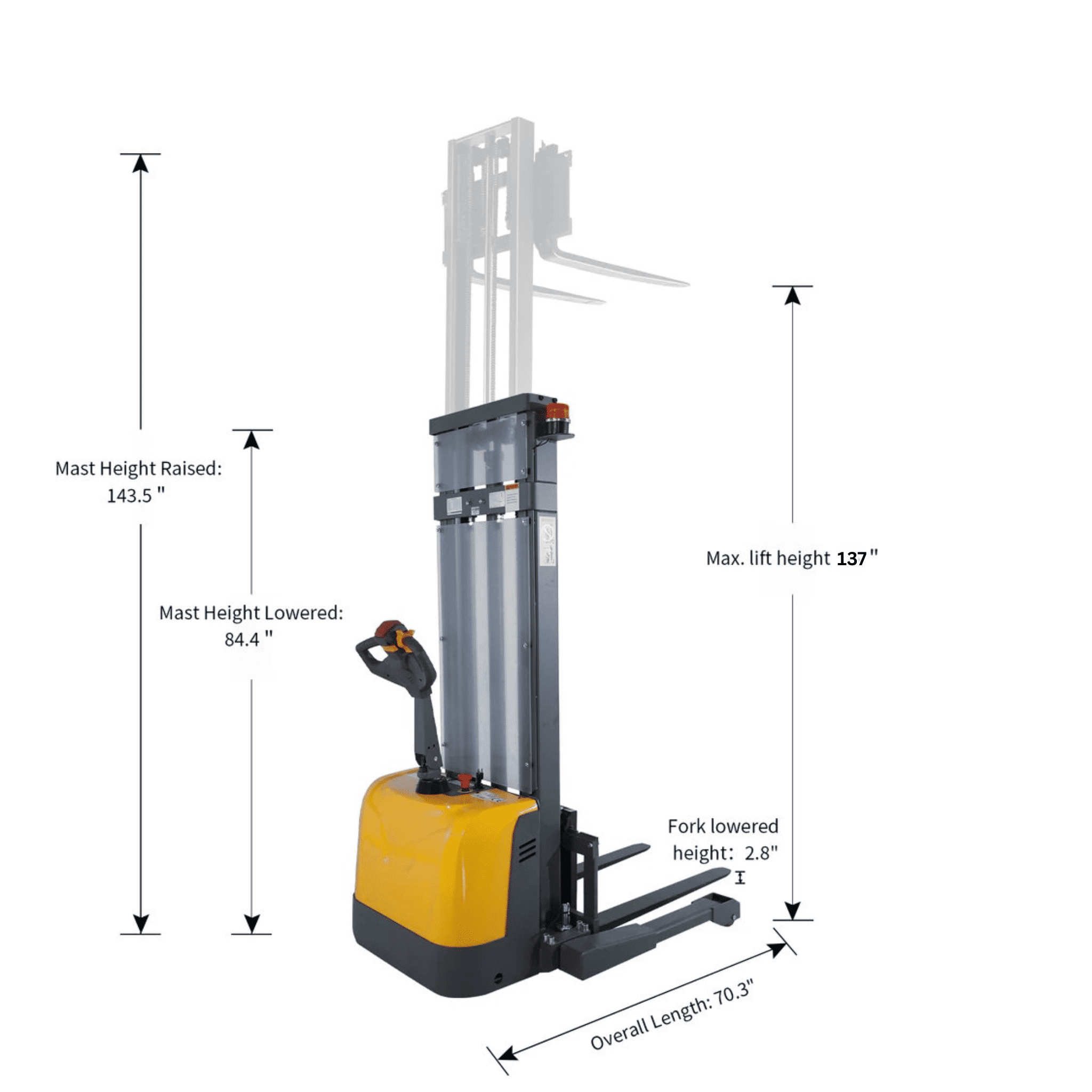

  • Maximum Lift Height: 137 inches

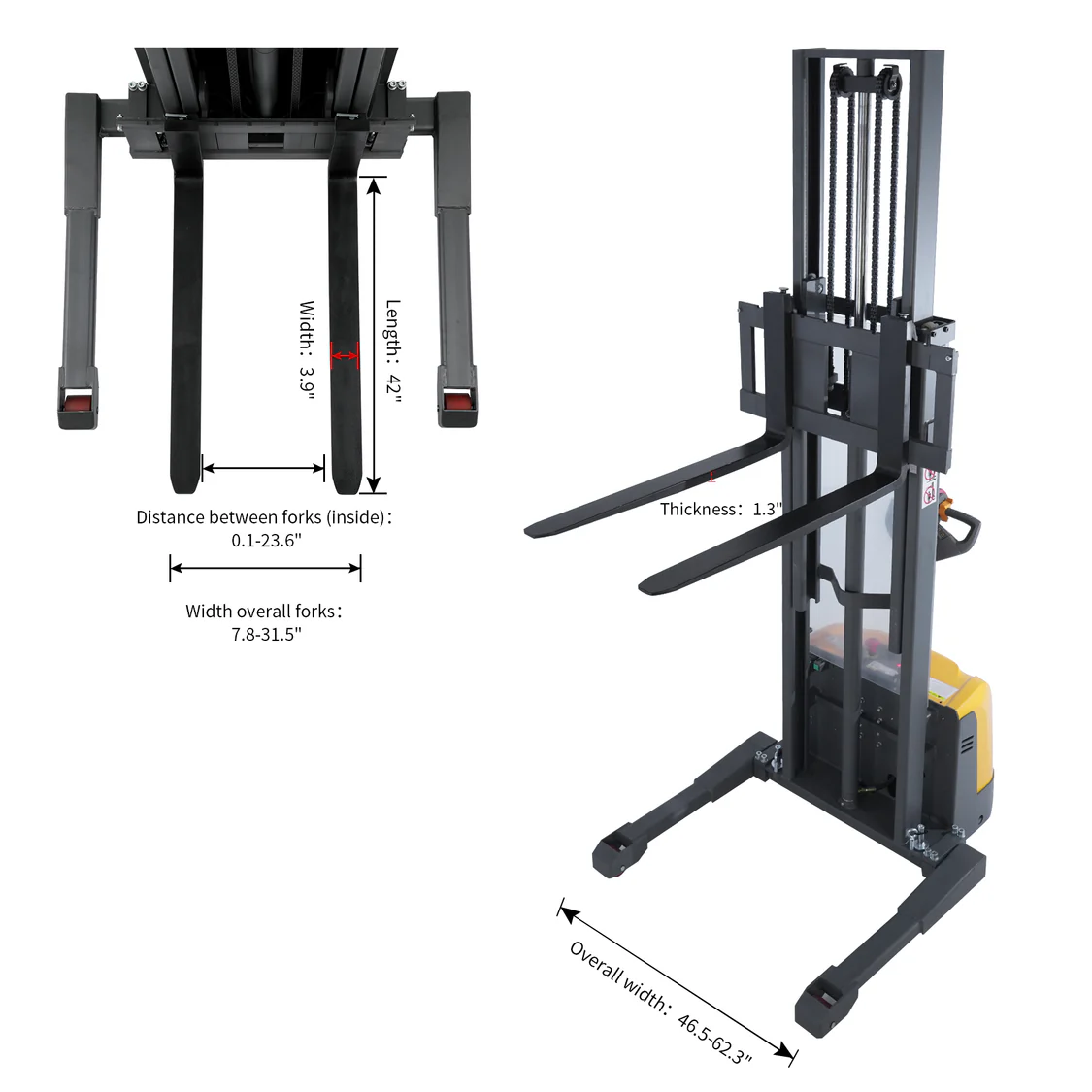

  • Fork Size: 42″ L × 1.3″ Thick × 7.8–31.5″ Adjustable Width
  • Chassis Width: 46.5″–62.3″
  • Turning Radius: 52.9 inches
  • Aisle Width Requirement: 88.3 inches
  • Travel Speed: Up to 3.1 mph
  • Lifting Speed: Up to 5.9 in/s
  • Lowering Speed: Up to 5.9 in/s
  • Weight: 1,270 lbs
  • Battery: Dual 12V lead-acid batteries (24V/100Ah)
  • Charger: Built-in 24V / 10A, 10-hour full charge

Powerful Lifting Capacity – Handles up to 3,300 lbs, reaching heights of 137 inches for efficient stacking and high shelving operations.

Adjustable Forks & Straddle Legs – Flexible fork width (7.8–31.5″) and leg width (46.5–62.3″) allow compatibility with various pallet sizes, including closed pallets.

Compact & Maneuverable – Requires only 88.3 inches aisle width with a 52.9-inch turning radius, ideal for tight spaces and confined storage areas.

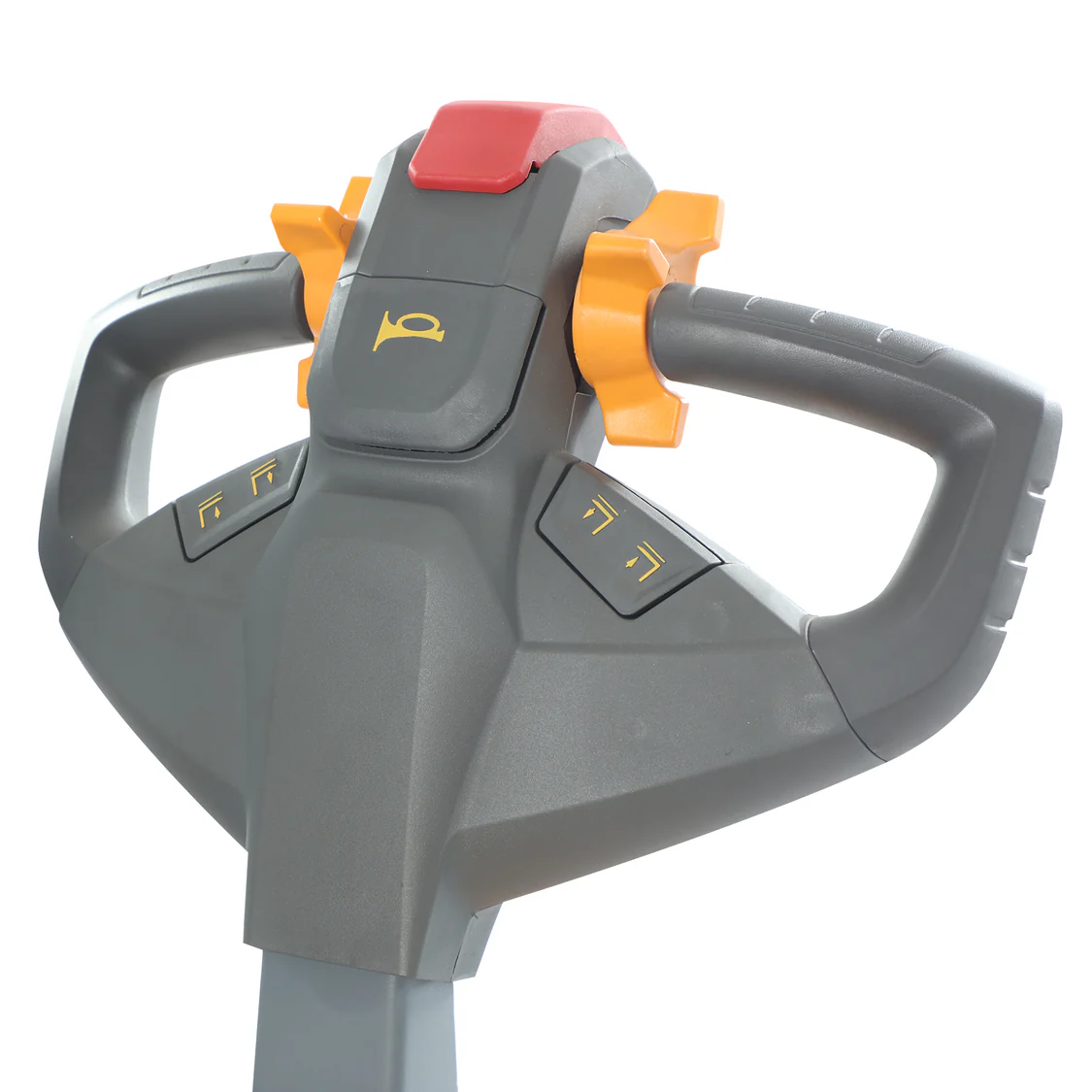

Smart Multi-Function Handle – Ergonomic controls for throttle, lift/lower, horn, turtle mode, and emergency stop, reducing operator fatigue.

Reliable 24V Battery System – Dual 12V lead-acid batteries (24V/100Ah) with a built-in charger, providing up to 10 hours of runtime and easy plug-in charging.

Integrated Safety Features – Regenerative braking, belly reverse switch, high-lift speed limiter, and emergency stop for safer operations.

Durable German Design – Award-winning styling with strong steel construction, elevated motor for dust protection, and easy maintenance access panels for minimal downtime.

  • Indoor and outdoor warehouse operations
  • Industrial freight handling and logistics
  • Manufacturing and construction material movement
  • General heavy-duty material handling
